Ozone Sensor Wi-Fi O3
FEATURES
Remote ozone monitoring in disinfection and sterilization places such as hospitals and pharmaceutical workshops
Monitoring indoor environment ozone of office buildings, hotels, shopping malls, libraries and other public places
All other applications that require collection and analysis of ozone data
TECHNICAL SPECIFICATIONS
| General Data | |
| Power supply | 24VAC/VDC±10%
100~230VAC (Either-or) |
| Power | 2.0W （Average power） |
| Working environment | 0~50℃/ 0~95%RH |
| Storage environment | -5℃~60℃,0~90%RH(No condensation) |
| Dimension/Net weight | 95(W)X117(L)X36(H)mm / 260g |
| Manufacturing process | ISO 9001 certified |
| Housing and IP class | PC/ABS fire proof plastic， IP30 protection class |
| Compliance | CE-EMC certificate |
| Ozone Sensor | |
| Sensor element | Electrochemical O3 |
| Sensor lifetime | >2 years, sensor modular design, easy to replace |
| Warm uptime | <60 second |
| Response time (T90) | <120 second |
| Signal update | 1 second |
| Measuring Range | 0-500ppb(Default)/1000ppb/5000ppb/10000ppb optional |
| Accuracy | ±20ppb + reading 5% (20℃/ 30-60%RH) |
| Display resolution | 1ppb (0.01mg/m3) |
| Stability | ±0.5% |
| Zero drifting | <1% every year |
| Humidity Monitoring | Optional |
| Output | |
| Analog Output | OLED display showing real-time measurement of ozone and temperature& Humidity. |
| Communication interface | WIFI @2.4 GHz 802.11b/g/n |
| Data transmission | Measurement averages per minute / hour / 24 hours |
| Serial port extension | RS485 (Modbus RTU)
Communication rate: 9600bps (default), 15KV antistatic protection |
| Indicator light | Green: The ozone sensor is working properly
Red: No ozone sensor output |

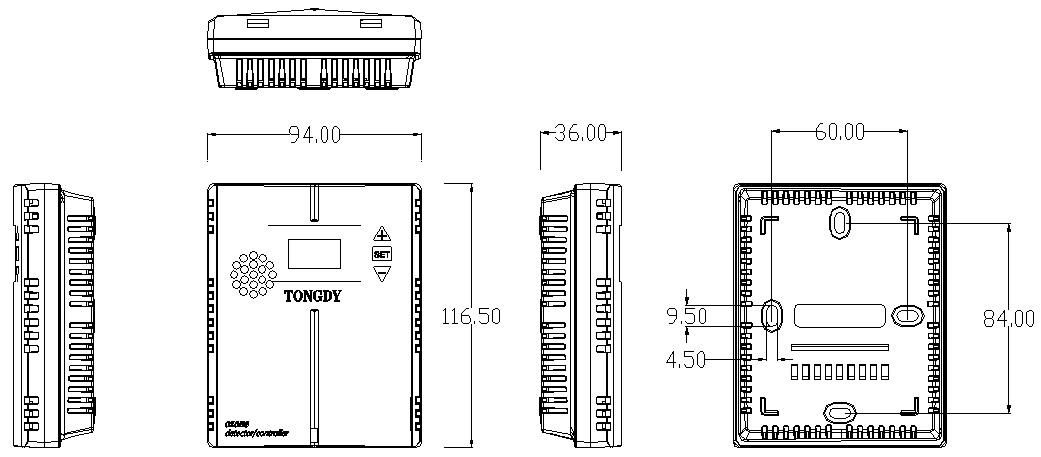

DIMENSIONS
